Autonomous Color Learning

This page describes the basic autonomous color learning scheme that works in our lab. In more recent results, we generalize the method to work in more uncontrolled conditions, such as indoor corridors. Recently, we have also combined this with our approach for illumination invariance to generate a method that enables the robot to autonomously detect and adapt to changes in illumination conditions.

Color segmentation is a challenging subtask in computer vision. Most popular approaches are computationally expensive, involve an extensive off-line training phase and/or rely on a stationary camera. We present an approach for color learning on-board a legged robot with limited computational and memory resources. A key defining feature of the approach is that it works without any labeled training data. Rather it trains autonomously from a color-coded map of its environment. The process is fully implemented, completely autonomous, and provides high degree of segmentation accuracy.

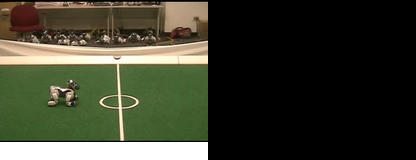

Here, we present some image sequences that show the process that the robot goes through to learn the colors on the field. The videos are image sequences of that correspond to what the robot sees through its camera as it goes through the learning process. The sequences were generated by having the robot transmit the images to a PC, over the wireless network. Since the original sequences are several minutes long (see paper for details), we sampled them to select one frame for every six frames of the actual sequence. The sequences are therefore not at the actual frame rate (six times as fast). List of Image sequences (shown below):

Description of Images

We also provide a set of images that show the segmentation results obtained by incorporating the color map learnt by the robot, using our approach. The images were captured using the robot's camera and segmented using the color maps learnt by the robot autonomously. Each set of images is suitably labeled by a caption. More details on the actual segmentation algorithm can be found in the paper.


Markers


Markers - Original


Markers - YCbCr


Markers - LAB


Markers - HLabel




Markers and Ball


Markers + Ball - Original


Markers + Ball - YCbCr


Markers + Ball - LAB


Markers + Ball - HLabel




Ball alone


Balls - Original


Balls - YCbCr


Balls - LAB


Balls - HLabel




Opponent - Red


Opponents - Original


Opponents - LAB




New Illumination


New Illumination - Original


Segmentation with old color map


Segmentation with new color map




Full details of our approach are available in the following paper:

There are two limitations to this approach: We tackle the first problem by proposing a hybrid color representation that efficiently models color distributions that are multi-modal. The robot autonomously chooses the best representation for each color and then learns the corresponding parameters. Complete details on this can be found here.
