Section 2.1 Opening Remarks¶
Unit 2.1.1 Launch¶
At the end of the last Week, you used the Live Script in

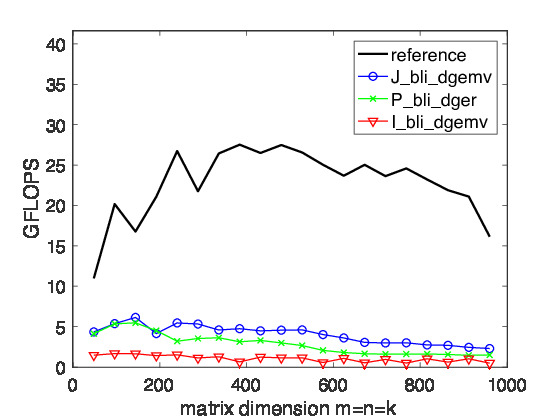

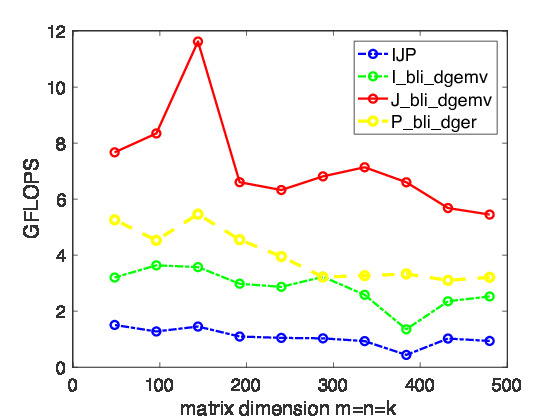

Assignments/Week2/C/data/Plot_All_Outer.mlx to compare and contrast the performance of many of the algorithms that use the I, J, and P loop as the outer-most loop, yielding the graph
In that Live Script, change the ( 0 ) in
if ( 0 ) plot( data(:,1), data(:,3), 'MarkerSize', 8, 'LineWidth', 1, ... 'LineStyle', '-', 'DisplayName', 'Ref', 'Color', plot_colors( 1,: ) ); endto ( 1 ) and regenerate the graph. What do you observe?
Unit 2.1.2 Outline Week 2¶
Unit 2.1.3 What you should know¶
