Simulation Results

The series of simulation results we carried out reflect in part the major aim of establishing the existence of the global control model for the NRT.

In Figures 6--16, we present the results obtained from actual simulation runs. The simulation code we developed was very modular in design, allowing for easy scaling to more powerful simulations, which could, with some reconfiguration, also be performed on parallel processing machines. It is hoped in future to extend the simulations to the more realistic case of two-dimensional sheets of thalamus, NRT and cortical tissue, and this can easily be accommodated.

The x-axes in these plots represent the spatial positions of a line of 100 neurons. The y-axes represent and for the cases of the thalamic excitatory and inhibitory neurons respectively (where OUT has its usual ANN interpretation), and user-scaledgif raw voltage output from the and excitatory neurons in the NRT and cortex respectively. Time delays for signal propagation between neurons were set to zero (although they could easily be incorporated in any more realistic future runs).

The very simplest situation one can envisage with this system is that where there is no lateral coupling between NRT neurons. Such a system (Figure 6) is very useful for evaluating the effect of feedback strength between neurons of the three layers. We see that each vertical module acts in essence like an amplifier for its particular input signal.

Since there exist a large number of free parameters in this system (between 20-60, depending on how the simulations are configured), it is useful to determine suitable ranges for the allowed values these can take, in addition to the constraints in (26). We do this by introducing lateral connectivity (given by equations (14), (18)) and experimenting with different values of the amplitudes, thresholds and temperatures of the neurons, and the range of the spreads for the lateral terms. The last of these turns out to be a stability parameter, in that excessively long-ranged influence of the lateral connectivity terms leads to unrealistically large output voltages in the NRT neurons. We identify such behaviour as the nonlinear regime of operation. This behaviour is illustrated in Figures 7--9, where we successively increase the spread from 5 to 50. Every positively valued segment of the NRT wave acts to allow an input getting through to the cortex, while every negatively valued segment acts to restrict it. This is best illustrated in Figure 8. For moderate values of the spread, we find that the spread has a second attribute as a mechanism for local control. For large values of the spread, the NRT activity begins to grow disproportionately (Figure 9).

The spread also plays a part in the outcome of amplitude competition, as in Figure 10, for instance. Of the two plateaus representing strong and weak inputs, the stronger input dominates the weaker one. The spatial wavelengths set up in the NRT region are much smaller than the spread of the plateaus, yet exercise strong control over the allowed cortical response. There is partially global control over the allowed set of inputs propagating up to the cortex, determined principally by wavelike activity in the NRT, itself a function of the spread.

It is interesting to note here the relative effects of the difference of Gaussian (DOG) and dendro-dendritic terms in the emergence of waves on the NRT sheet. Figure 11 illustrates the result we obtain be eliminating the dendro-dendritic term, while Figure 12 shows the activity upon removal of the DOG term. We see that the DOG term is clearly less influential in both spatial waveform generation and the development of strong patterns of activity in the cortical layer. This is to be expected, however, since axon collaterals in the DOG representation are not long-ranged.

The global control mechanism that is predicted in the Simplified Global ... section is illustrated in Figures 13--16. The spatially global wave of activity on the NRT exercises wavelength dependent control on the signals propagating forth to the cortex. The cortical activity persisting does not reflect the inputs very strongly (Figure 14), as it did for the partially global control in Figure 10, being influenced instead by the oscillatory character of the NRT activity

A significant aspect of this system, when operating in a global control phase, is its sensitive dependence on classes of inputs. We have seen that during such a phase, the cortex only sees the winner of the competition taking place on the NRT. Equivalently, the NRT (according to the theory of the Simplified Global ... section) is acting like non-linear filter that allows one out of all the Fourier components presented to it to propagate through. We expect therefore that the selection of this particular Fourier component would be critically influenced by factors such as the wavelength and the amplitude of the input (we noted this towards the end of the Simplified Global ... section as well). It is difficult to establish with certainty, however, which of these two are the more significant, since our simulation results shows only trends in the output, and not actual magnitudes thereof, as mentioned earlier.

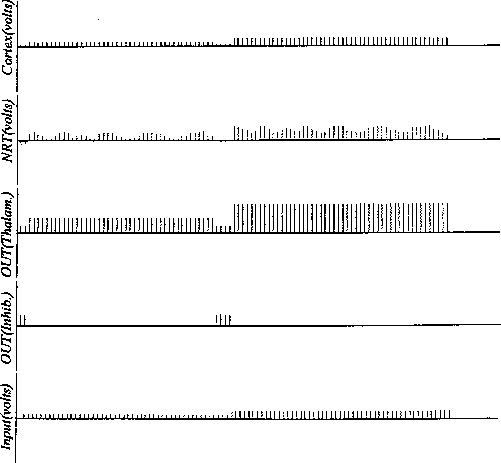

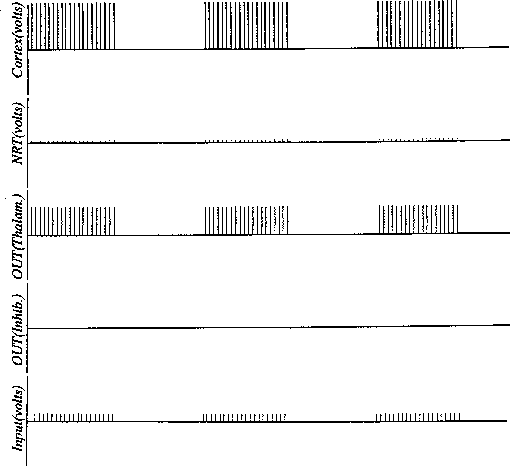

Figure 6: Simulation run with no lateral coupling between NRT neurons. The input essentially feeds through to the cortex, as might be expected.


Figure 7: Simulation run with lateral connectivity (both dendro-dendritic and DOG) introduced. The value chosen for the spread is small here. Wave activity is beginning to appear on NRT.

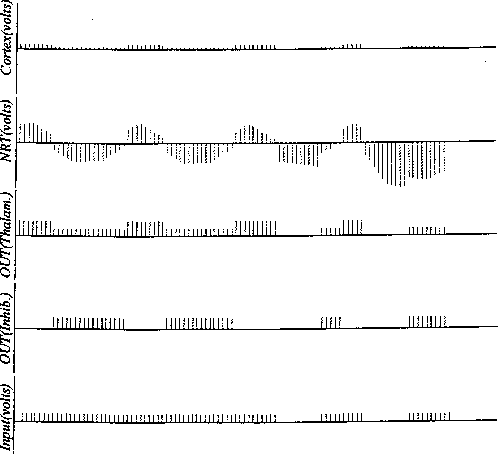

Figure 8: As for Figure 7, but with moderate values for the spread. The NRT is clearly influencing what is allowed to propagate through to the cortex.

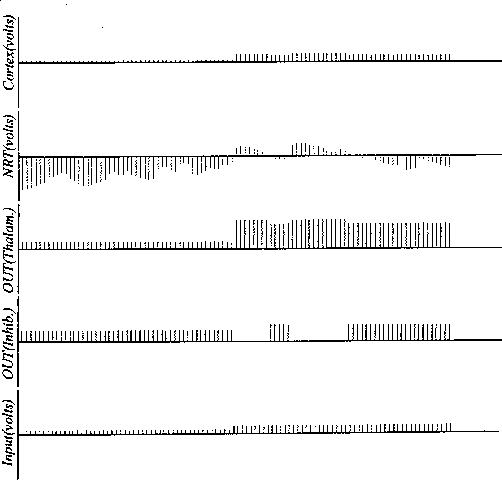

Figure 9: As for Figure 7, but with large values for the spread. The activity on the NRT is beginning to take on a non-linear mode of operation. There is still, however, control over what is allowed to go through to the cortex.

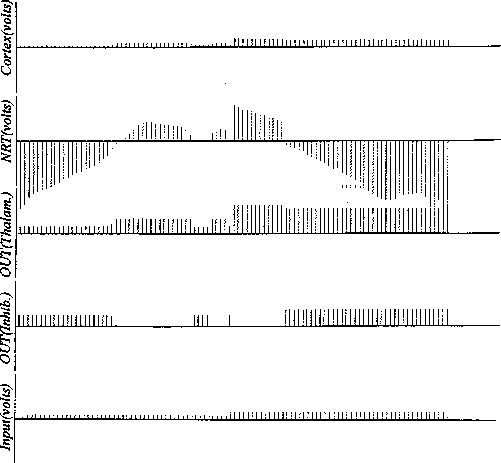

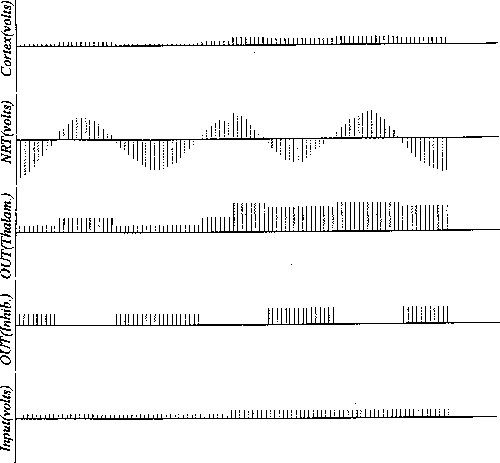

Figure 10: Simulation run showing amplitude competition. Of the strong and weak inputs being fed in, only the strong survives the journey to the cortex. There is partially global control exercised over this by the activity on the NRT.


Figure 11: Simulation run showing the development of activity on NRT with only a DOG form for the lateral connectivity. (Compare with Figure 12).


Figure 12: Simulation run showing the development of activity on NRT with only a dendro-dendritic form for the lateral connectivity. (Compare with Figure 11).


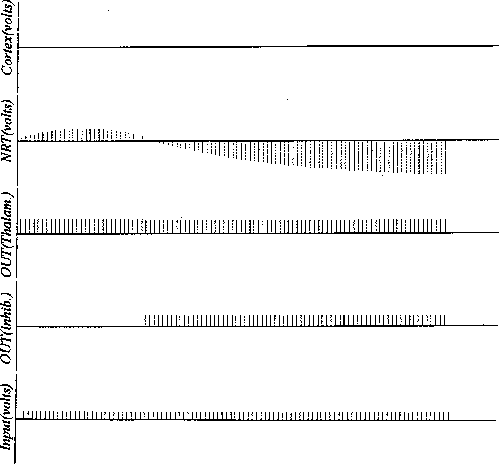

Figure 13: Simulation run showing full global control with a spatially constant input. The activity on the cortex reflects the activity on the NRT, and is not dependent on the form of the input.

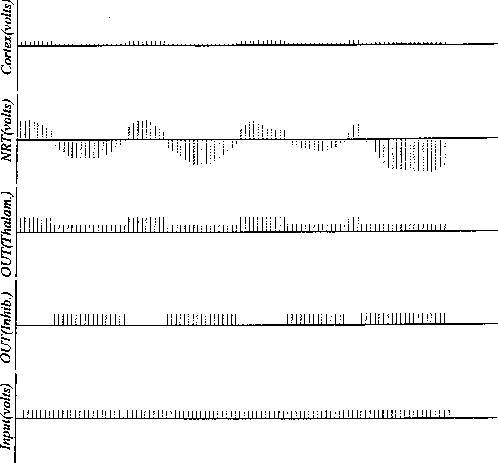

Figure 14: Simulation run showing full global control with semi-constant spatial input. Again, the cortex activity is influenced by the NRT alone.

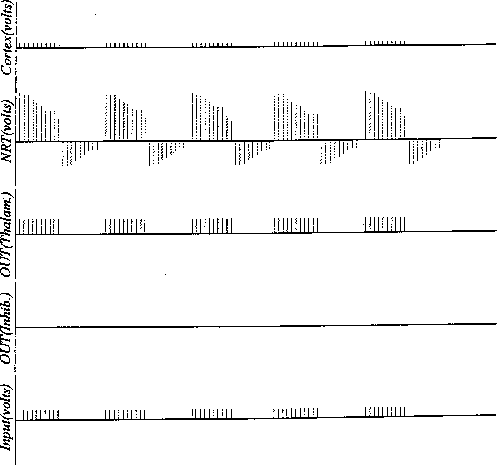

Figure 15: Simulation run showing full global control with short-wavelength periodic input.

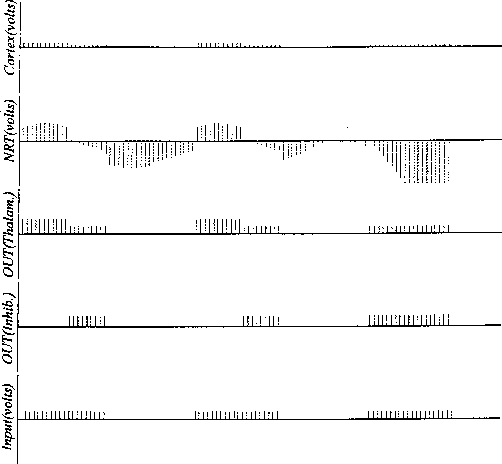

Figure 16: Simulation run showing full global control with medium-wavelength periodic input.
