The company that you work for is moving to a larger building. The new office is rectangular and will be subdivided into cubicles. Your employees want to request particular positions for their cubicles. You want to set up a system that lets them make their requests.

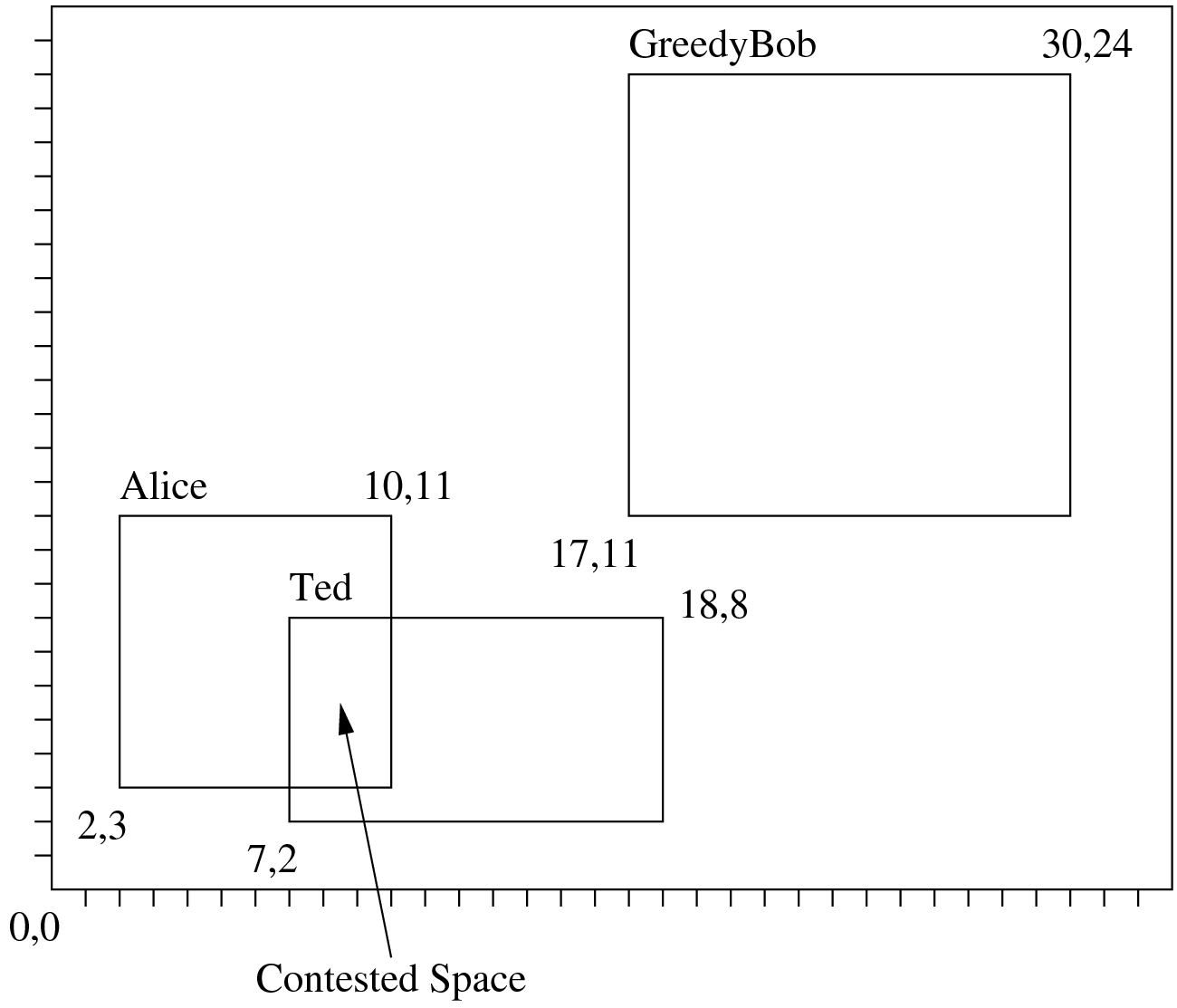

You have expressed the new office space as a coordinate system where each unit is one foot. The south-west corner of this space is assigned the coordinate (0, 0). The positive X axis is aligned with the inner edge of the building's south wall. The positive Y axis is aligned with the west wall. Employees request a position for their cubicle by giving the coordinates of the cubicle's south-west corner and the cubicle's north-east corner.
Input: As you did for the previous assignments, you will read the input from standard input (stdin) in the following format:
33 26 3 Alice 2 3 10 11 Ted 7 2 18 8 GreedyBob 17 11 30 24
Each input starts with a line containing a pair of integers w and h giving the size of the new office space (w is the number of feet west-to-east, h is the number of feet south-to-north). Both of these numbers are in the range 1 to 100.
After this is a line containing an integer n between 1 and 20 inclusive, giving the number of employees you have. Following this are n cubicle placement requests, one per line.
Each request starts with the name of the employee. The name is a string of 1 to 20 characters (mix of upper and lower case letters a-z, no spaces). The name is followed by four integers x1, y1, x2, y2 where (x1, y1) indicate the coordinates of the south-west corner of the desired cubicle and (x2, y2) indicate the coordinates of the north-east corner. Each set of request coordinates satisfies 0 ≤ x1 ≤ x2 ≤ w and 0 ≤ y1 ≤ y2 ≤ h.
Output: You will print your output to standard output (stdout) in the following format:
Total 858 Unallocated 574 Contested 15 Alice 49 Ted 51 GreedyBob 169
For the given input, print out a report that starts with the total number of square feet in the building and the number of square feet that no employee has requested (the unallocated space).
Next give the total number of square feet that are contested because more than one empoyee has requested the same region of the floor.
Finally, for each employee give the number of square feet that that employee can be guaranteed to have. This is the total area that they requested minus any regions that were requested by another employee.
List the employees in the same order they were given in the input.
The file (OfficeSpace.py) that you will be submitting will have the following structure. You will follow the standard coding conventions in Python. Here is the format of your code:
In this problem every office space is a rectangle whose sides are oriented to x and y axis. An office space is defined by a tuple of four integers (x1, y1, x2, y2). Where (x1, y1) denote the lower left corner and (x2, y2) represent upper right corner.
# File: OfficeSpace.py # Description: # Student Name: # Student UT EID: # Partner Name: # Partner UT EID: # Course Name: CS 313E # Unique Number: # Date Created: # Date Last Modified: # Input: a rectangle which is a tuple of 4 integers (x1, y1, x2, y2) # Output: an integer giving the area of the rectangle def area (rect): # Input: two rectangles in the form of tuples of 4 integers # Output: a tuple of 4 integers denoting the overlapping rectangle. # return (0, 0, 0, 0) if there is no overlap def overlap (rect1, rect2): # Input: bldg is a 2-D array representing the whole office space # Output: a single integer denoting the area of the unallocated # space in the office def unallocated_space (bldg): # Input: bldg is a 2-D array representing the whole office space # Output: a single integer denoting the area of the contested # space in the office def contested_space (bldg): # Input: bldg is a 2-D array representing the whole office space # rect is a rectangle in the form of a tuple of 4 integers # representing the cubicle requested by an employee # Output: a single integer denoting the area of the uncontested # space in the office that the employee gets def uncontested_space (bldg, rect): # Input: office is a rectangle in the form of a tuple of 4 integers # representing the whole office space # cubicles is a list of tuples of 4 integers representing all # the requested cubicles # Output: a 2-D list of integers representing the office building and # showing how many employees want each cell in the 2-D list def request_space (office, cubicles): # Input: no input # Output: a string denoting all test cases have passed def test_cases (): assert area ((0, 0, 1, 1)) == 1 # write your own test cases return "all test cases passed" def main(): # read the data # run your test cases ''' print (test_cases()) ''' # print the following results after computation # compute the total office space # compute the total unallocated space # compute the total contested space # compute the uncontested space that each employee gets if __name__ == "__main__": main()
Hint: Make use of the fact that the coordinates are all integers. Represent the office space as a 2-D list.
You may not change the names of the functions listed. They must have the functionality as given in the specifications. You can always add more functions than those listed.For this assignment you may work with a partner. Both of you must read the paper on Pair Programming and abide by the ground rules as stated in that paper. If you are working with a partner then only one of you will submit the code. Make sure that in the header in you have your name and UT EID and your partner's name and UT EID. If you are working alone then you will just have your name and your UT EID.
Use the Canvas program to submit your OfficeSpace.py file. We should receive your work by 11 PM on Friday, 29 Sep 2023. There will be substantial penalties if you do not adhere to the guidelines.
This problem was taken from Kattis.
