## Subsection4.6.2Summary

The LLS problem can be states as: Given $A \in \Cmxn$ and $b \in \Cm$ find $\hat x \in \Cn$ such that

\begin{equation*} \| b - A \hat x \|_2 = \min_{x \in \Cn} \| b - A x \|_2 . \end{equation*}

Given $A \in \Cmxn \text{,}$

• The column space, $\Col( A ) \text{,}$ which is equal to the set of all vectors that are linear combinations of the columns of $A$

\begin{equation*} \{ y ~\vert~ y = A x \}. \end{equation*}
• The null space, $\Null( A ) \text{,}$ which is equal to the set of all vectors that are mapped to the zero vector by $A$

\begin{equation*} \{ x ~\vert~ A x = 0 \}. \end{equation*}
• The row space, $\Rowspace( A ) \text{,}$ which is equal to the set

\begin{equation*} \{ y ~\vert~ y^H = x^H A \}. \end{equation*}

Notice that $\Rowspace( A ) = \Col( A^H ) \text{.}$

• The left null space, which is equal to the set of all vectors

\begin{equation*} \{ x ~\vert~ x^H A = 0 \}. \end{equation*}

Notice that this set is equal to $\Null( A^H ) \text{.}$

• If $A x = b$ then there exist $x_r \in \Rowspace( A )$ and $x = x_r + x_n$ where $x_r \in \Rowspace( A )$ and $x_n \in \Null( A ) \text{.}$

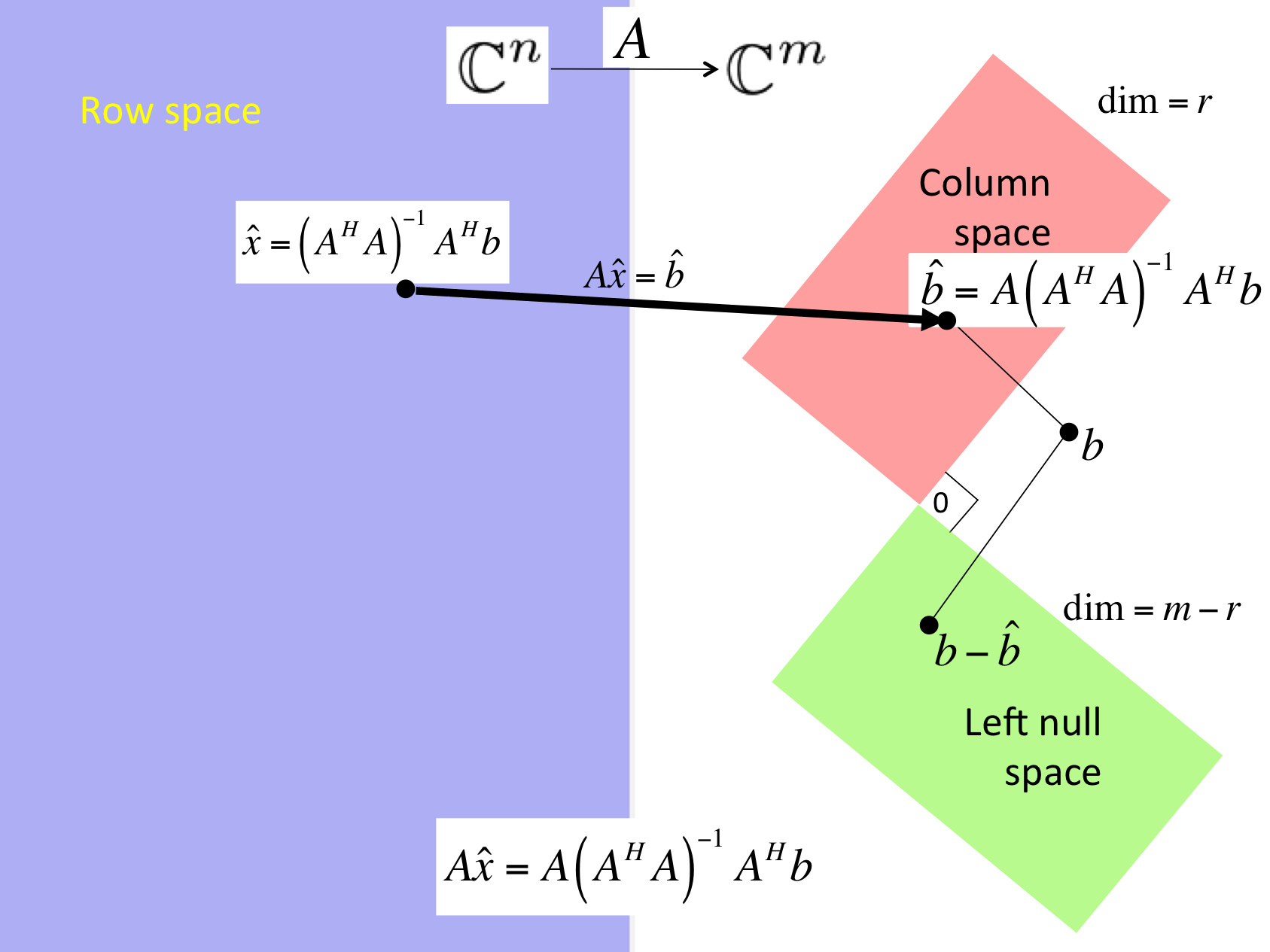

These insights are summarized in the following picture, which also captures the orthogonality of the spaces.

If $A$ has linearly independent columns, then the solution of LLS, $\widehat x \text{,}$ equals the solution of the normal equations

\begin{equation*} ( A^H A) \hat x = A^H b. \end{equation*}

as summarized in

The (left) pseudo inverse of $A$ is given by $A^{\dagger} = ( A^H A )^{-1} A^H$ so that the solution of LLS is given by $\widehat x = A^\dagger b \text{.}$

###### Definition4.6.2.1. Condition number of matrix with linearly independent columns.

Let $A \in \Cmxn$ have linearly independent columns (and hence $n \leq m$). Then its condition number (with respect to the 2-norm) is defined by

\begin{equation*} \kappa_2( A ) = \| A \|_2 \| A^\dagger \|_2 = \frac{\sigma_0}{\sigma_{n-1}}. \end{equation*}

Assuming $A$ has linearly independent columns, let $\hat b = A \hat x$ where $\hat b$ is the projection of $b$ onto the column space of $A$ (in other words, $\hat x$ solves the LLS problem), $\cos( \theta ) = \| \hat b \|_2 / \| b \|_2 \text{,}$ and $\hat b + \delta\! \hat b = A ( \hat x + \delta\! \hat x ) \text{,}$ where $\delta\! \hat b$ equals the projection of $\delta\!b$ onto the column space of $A \text{.}$ Then

\begin{equation*} \frac{\| \delta\! \hat x\|_2}{\| \hat x \|_2} \leq \frac{1}{\cos( \theta )} \frac{\sigma_0}{\sigma_{n-1}} \frac{\| \delta\! b \|_2}{\| b \|_2} \end{equation*}

captures the sensitivity of the LLS problem to changes in the right-hand side.

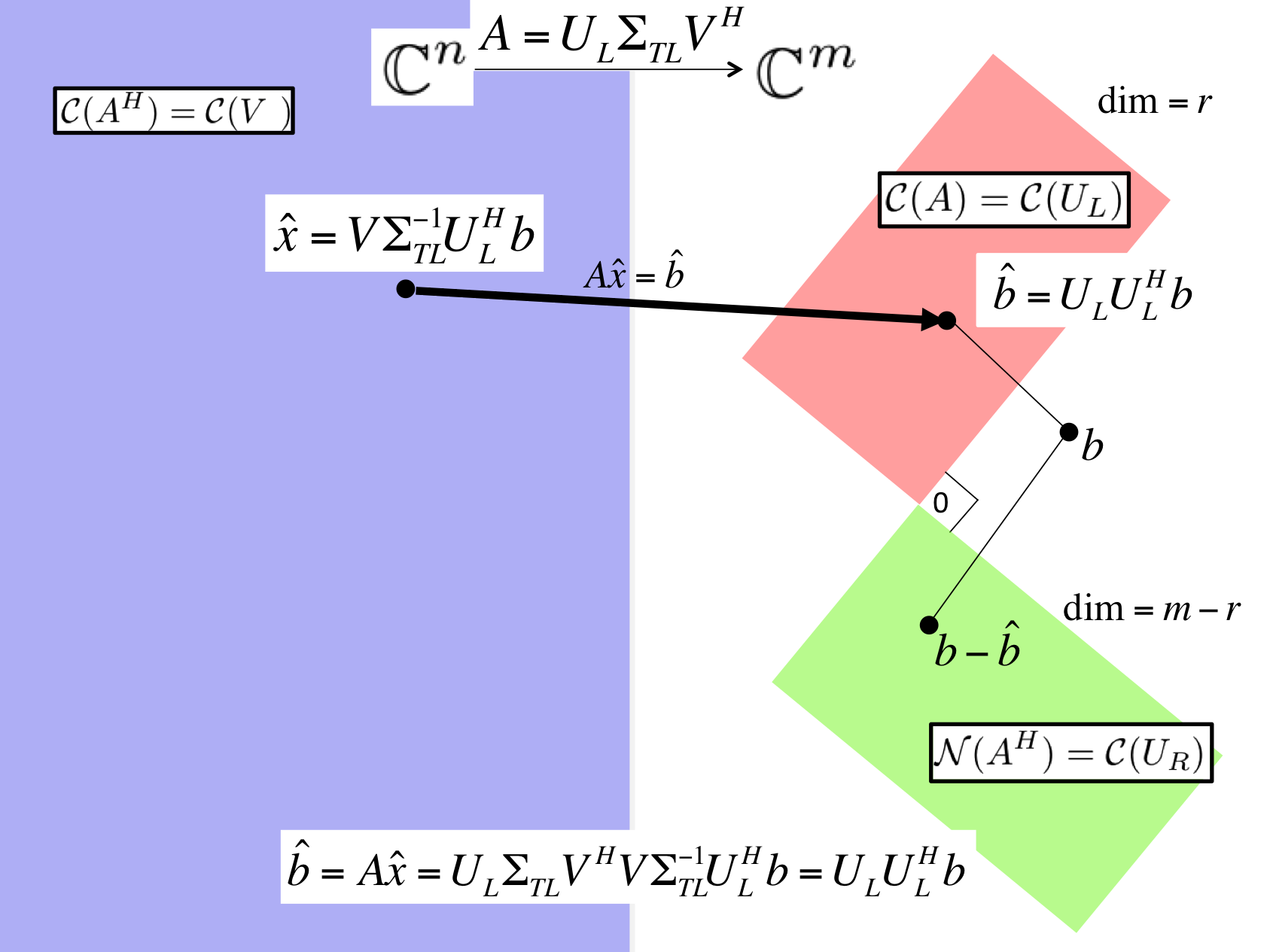

If $A$ has linearly independent columns and $A = U_L \Sigma_{TL} V_L^H$ is its Reduced SVD, then

\begin{equation*} \hat x = V_L \Sigma_{TL}^{-1} U_L^H b \end{equation*}

solves LLS.

Given $A \in \C^{m \times n}\text{,}$ let $A = U_L \Sigma_{TL} V_L^H$ equal its Reduced SVD and $A = \left( \begin{array}{c | c} U_L \amp U_R \end{array} \right) \left( \begin{array}{c | c} \Sigma_{TL} \amp 0 \\ \hline 0 \amp 0 \end{array} \right) \left( \begin{array}{c | c} V_L \amp V_R \end{array} \right)^H$ its SVD. Then

\begin{equation*} \hat x = V_L \Sigma_{TL} U_L^H b + V_R z_b, \end{equation*}

is the general solution to LLS, where $z_b$ is any vector in $\C^{n-r} \text{.}$

Solving LLS via Gram-Schmidt QR factorization for $A \in \Cmxn \text{:}$

• Compute QR factorization via (Classical or Modified) Gram-Schmidt: approximately $2 m n^2$ flops.

• Compute $y = Q^H b \text{:}$ approximately $2 m n^2$ flops.

• Solve $R \hat x = y \text{:}$ approximately $n^2$ flops.

Solving LLS via Householder QR factorization for $A \in \Cmxn \text{:}$

• Householder QR factorization: approximately $2 m n^2 - \frac{2}{3} n^3$ flops.

• Compute $y_T = Q^H bnn$ by applying Householder transformations: approximately $4 m n - 2 n^2$ flops.

• Solve $R_{TL} \hat x = y_T \text{:}$ approximately $n^2$ flops.
