Unit 1.3.5 Matrix-vector multiplication via axpy operations

We now discuss how matrix-vector multiplication can be cast in terms of axpy operations.

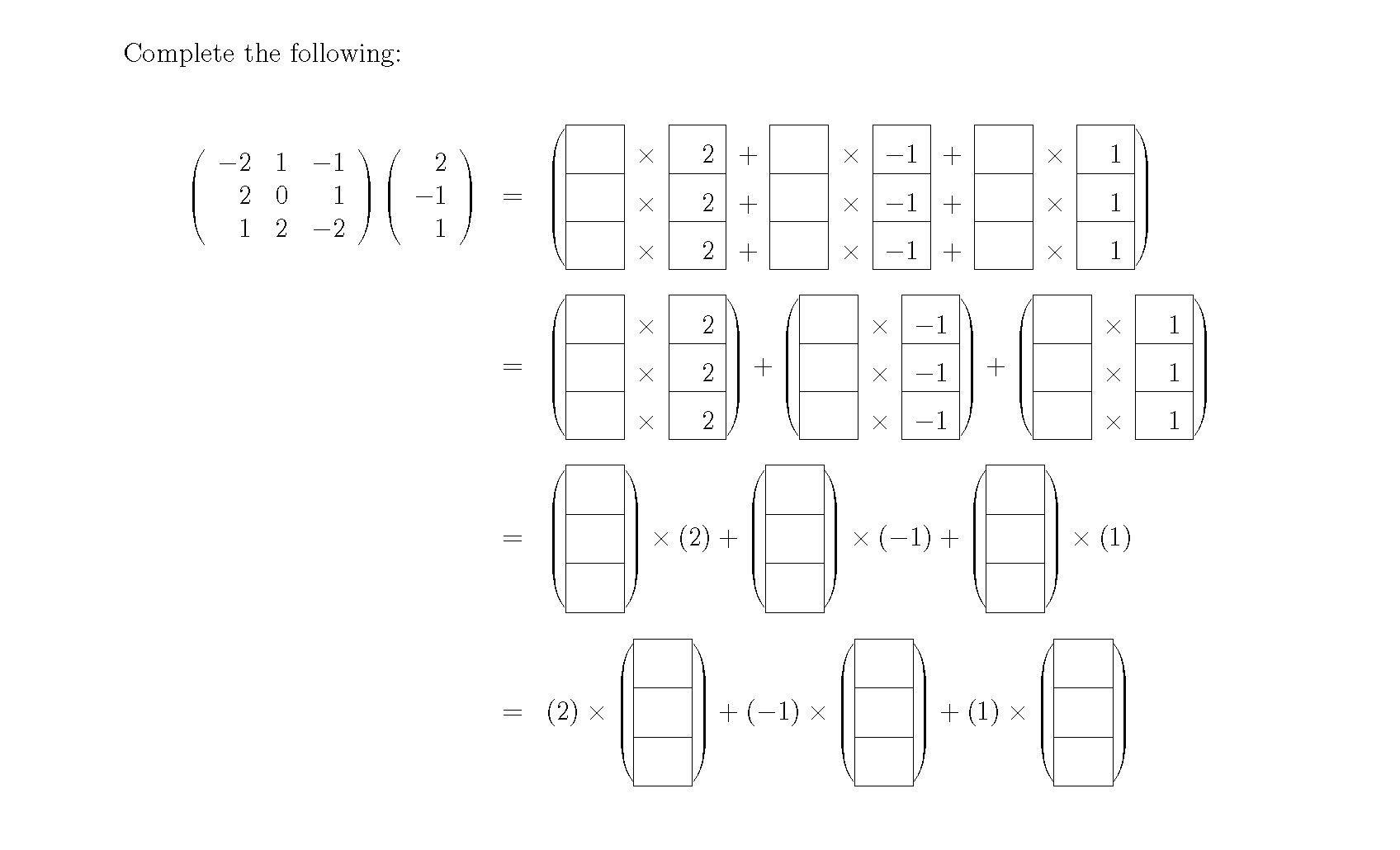

We capture the insights from this last exercise: Partition \(m \times n \) matrix \(A \) by columns and \(x \) by individual elements.

\begin{equation*} \begin{array}{rcl} y \amp:=\amp \left( \begin{array}{c | c | c | c} a_0 \amp a_1 \amp \cdots \amp a_{n-1} \end{array} \right) \left( \begin{array}{c} \chi_0 \\ \hline \chi_1 \\ \hline \vdots \\ \hline \chi_{n-1} \end{array} \right) + y \\ \amp=\amp \chi_0 a_0 + \chi_1 a_1 + \cdots + \chi_{n-1} a_{n-1} + y. \end{array} \end{equation*}

If we then expose the individual elements of \(A \) and \(y \) we get

\begin{equation*} \begin{array}{l} \left( \begin{array}{c} \psi_0 \\ \psi_1 \\ \vdots \\ \psi_{m-1} \end{array}\right) \\ ~~~:= \chi_0 \left( \begin{array}{c} \alpha_{0,0} \\ \alpha_{1,0} \\ \vdots \\ \alpha_{m-1,0} \end{array}\right) + \chi_1 \left( \begin{array}{c} \alpha_{0,1} \\ \alpha_{1,1} \\ \vdots \\ \alpha_{m-1,1} \end{array}\right) + \cdots + \chi_{n-1} \left( \begin{array}{c} \alpha_{0,n-1} \\ \alpha_{1,n-1} \\ \vdots \\ \alpha_{m-1,n-1} \end{array}\right) + \left( \begin{array}{c} \psi_0 \\ \psi_1 \\ \vdots \\ \psi_{m-1} \end{array}\right) \\ ~~~= \left( \begin{array}{c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c} \chi_0 \amp \alpha_{0,0} \amp + \amp \chi_1 \amp \alpha_{0,1} \amp + \amp \cdots \amp \chi_{n-1} \amp \alpha_{0,n-1} \amp + \amp \psi_0 \\ \chi_0 \amp \alpha_{1,0} \amp + \amp \chi_1 \amp \alpha_{1,1} \amp + \amp \cdots \amp \chi_{n-1} \amp \alpha_{1,n-1} \amp + \amp \psi_1 \\ \amp\amp\amp\amp\amp\vdots\amp\amp\amp \\ \chi_0 \amp \alpha_{m-1,0} \amp + \amp \chi_1 \amp \alpha_{m-1,1} \amp + \amp \cdots \amp \chi_{n-1} \amp \alpha_{m-1,n-1} \amp + \amp \psi_{m-1} \end{array} \right) \\ ~~~= \left( \begin{array}{c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c @{~} c} \alpha_{0,0} \amp \chi_0 \amp + \amp \alpha_{0,1} \amp \chi_1 \amp + \amp \cdots \amp \alpha_{0,n-1} \amp \chi_{n-1} \amp + \amp \psi_0 \\ \alpha_{1,0} \amp \chi_0 \amp + \amp \alpha_{1,1} \amp \chi_1 \amp + \amp \cdots \amp \alpha_{1,n-1} \amp \chi_{n-1} \amp + \amp \psi_1 \\ \amp\amp\amp\amp\amp\vdots\amp\amp\amp \\ \alpha_{m-1,0} \amp \chi_0 \amp + \amp \alpha_{m-1,1} \amp \chi_1 \amp + \amp \cdots \amp \alpha_{m-1,n-1} \amp \chi_{n-1} \amp + \amp \psi_{m-1} \end{array} \right). \end{array} \end{equation*}

This discussion explains the JI loop for computing \(y := A x + y \text{:}\)

\begin{equation*} \begin{array}{l} {\bf for~} j := 0, \ldots , n-1 \\ ~~~ \left. \begin{array}{l} {\bf for~} i := 0, \ldots , m-1 \\ ~~~ ~~~ \psi_i := \alpha_{i,j} \chi_{j} + \psi_i \\ {\bf end} \end{array} \right\} ~~~ y := \chi_j a_j + y \\[0.1in] {\bf end} \end{array} \end{equation*}

What it also demonstrates is how matrix-vector multiplication can be implemented as a sequence of axpy operations.

Homework 1.3.5.2.

In directory Assignments/Week1/C complete the implementation of matrix-vector multiplication in terms of axpy operations

#define alpha( i,j ) A[ (j)*ldA + i ]   // map alpha( i,j ) to array A
#define chi( i )  x[ (i)*incx ]         // map chi( i )  to array x
#define psi( i )  y[ (i)*incy ]         // map psi( i )  to array y

void Axpy( int, double, double *, int, double *, int );

void MyGemv( int m, int n, double *A, int ldA,
           double *x, int incx, double *y, int incy )
{
  for ( int j=0; j<n; j++ )
    Axpy(      ,        ,      ,   ,   ,     );
}

in file Assignments/Week1/C/Gemv_J_Axpy.c. You can test your implementation by executing

make J_Axpy

Remember: you implemented the Axpy routine in the last unit, and we did not test it... So, if you get a wrong answer, the problem may be in that implementation.

Hint
Solution
Assignments/Week1/Answers/Gemv_J_Axpy.c.
Remark 1.3.5.

The file name Gemv_J_Axpy.c can be decoded as follows:

  • The Gemv stands for "GEneral Matrix-Vector multiplication."

  • The J indicates a loop indexed by \(j\) (a loop over columns of the matrix).

  • The Axpy indicates that the operation performed in the body of the loop is an axpy operation.
