Boundary::BoundingBox< T, Boolean, Float > Class Template Reference

#include <boundingbox.h>

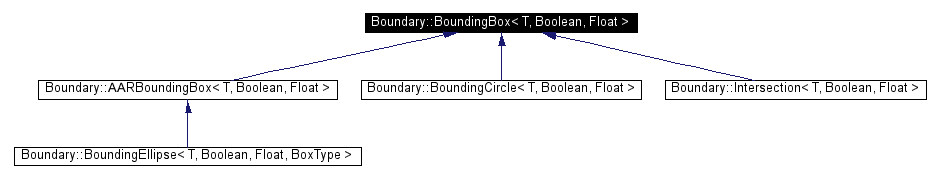

Inheritance diagram for Boundary::BoundingBox< T, Boolean, Float >:

[legend]List of all members.

---

Detailed Description

template<class T = double, class Boolean = bool, class Float = double>
class Boundary::BoundingBox< T, Boolean, Float >

Abstract base class specifying interface suitable for any bounding box.

Type Float is used for rotation, which requires floating point even if T is an integer.

Definition at line 29 of file boundingbox.h.

Public Types
typedef AARectangle< T, Boolean, Float >	Rectangle
typedef T	value_type
Public Methods
virtual Boolean	inside (T x, T y) const=0
	Whether the given point is enclosed by the box, inclusively.
virtual base &	scale (T xscale, T yscale)=0
	Scale the size of the box in X and Y dimensions.
virtual base &	rotate (Float angle)=0
	Rotate the box around the origin.
virtual base &	translate (T xoffset, T yoffset)=0
	Translate the origin of the box elsewhere.
virtual Rectangle	aarectangle () const=0
	Returns an axis-aligned rectangle fully enclosing this box, or an empty rectangle if no such finite rectangle exists.
virtual base *	clone () const=0
	Constructs an identical copy of self and returns it.
virtual std::ostream &	put (std::ostream &s) const
	Virtual interface to the operator<<, since << cannot be virtual.

---

Member Function Documentation

template<class T = double, class Boolean = bool, class Float = double> virtual std::ostream& Boundary::BoundingBox< T, Boolean, Float >::put (  std::ostream &    s )  const [inline, virtual]

Virtual interface to the operator<<, since << cannot be virtual. This implementation is just a stub, and should be overriden in derived classes. Outputs a human-readable representation to the given stream. Reimplemented in Boundary::AARBoundingBox< T, Boolean, Float, BoxType >, Boundary::Intersection< T, Boolean, Float, BBA, BBB >, and Boundary::BoundingCircle< T, Boolean, Float >. Definition at line 62 of file boundingbox.h.

---

The documentation for this class was generated from the following file:

• boundingbox.h

---
